01、Definition of turning and milling compound

At present, most of the turn-milling composite machining is completed on the turning center, and the general turning center is only to replace the ordinary turret tool holder of the CNC lathe with a power tool holder, and the spindle increases the C-axis function. Due to the limitations of turret tool structure and size, the power of the power head is small, the speed is not high, and the larger tool can not be installed. This turning center is mainly based on the car, and the milling and drilling function is only to do some auxiliary processing. The power tool holder is expensive, resulting in the high cost of the turning center, the domestic price is generally more than 100,000, imported more than 200,000, the average user can not afford. Most of the economical turn-milling complexes are XZC axes, which add a rotating C-axis on the chuck to achieve basic milling functions.

At present, there are many kinds of equipment in the market of milling composite machining center, WFL, DMG, Dalian machine tool, Taiwan Taiyu precision machine,DOOSAN(Doosan machine tool), all have this high-end equipment; At present, the market milling complex more well-known software edgecam, UG NX and so on.

02、Advantages of Turning and Milling Composite

Compared with conventional CNC machining technology, the outstanding advantages of composite machining are mainly reflected in the following aspects.

(1) Shorten the product manufacturing process chain and improve production efficiency. Turn-milling composite machining can achieve a single load to complete all or most of the processing processes, thus greatly shortening the product manufacturing process chain. On the one hand, this reduces the production auxiliary time caused by the change of the loading card, and also reduces the manufacturing cycle and waiting time of the tooling and fixture, which can significantly improve production efficiency.

(2) Reduce the number of clamping and improve the processing accuracy. The reduction of loading times avoids the accumulation of errors caused by the conversion of positioning reference. At the same time, most of the current turn-milling complex processing equipment has the function of online detection, which can realize the in-place detection and precision control of the key data in the manufacturing process, so as to improve the processing accuracy of the product.

(3) Reduce the footprint and reduce production costs. Although the single price of turning and milling composite processing equipment is relatively high, due to the shortening of the manufacturing process chain and the reduction of the equipment required for the product, as well as the reduction of the number of fixtures, workshop area and equipment maintenance costs, it can effectively reduce the overall fixed assets investment, production operation and management costs.

03、Application Range of Turning and Milling Compound

Turning and milling is suitable for many industries, especially those requiring the completion of complex parts. Some of the main industry applications include, but are not limited to:

Aerospace industry: The aerospace field has very high precision requirements for parts, and the turn-milling composite processing can meet the processing needs of complex structural parts and improve production efficiency and processing accuracy.

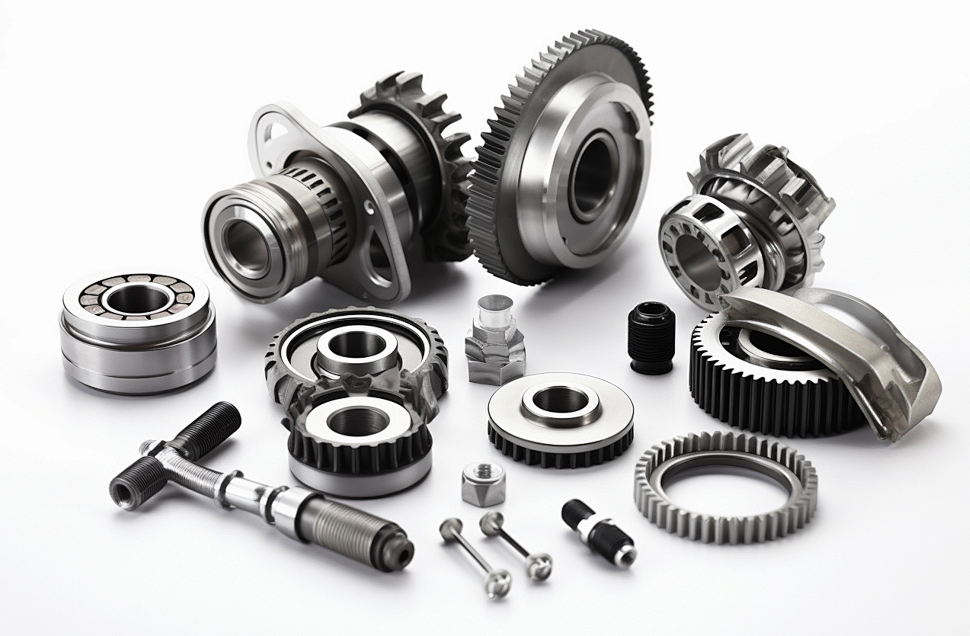

Automotive manufacturing: automotive parts usually have a complex shape and structure, turning milling composite processing can be used to process engine parts, chassis parts, etc., to improve processing efficiency and accuracy.

Mold manufacturing: Mold manufacturing has extremely high requirements for processing accuracy and surface quality, and turn-milling composite processing can achieve high-precision and high-efficiency mold processing.

Ship manufacturing industry: ship parts usually have large size and complex structure, turn-milling composite processing can be used to process hull structure, propeller and other parts.

Medical device manufacturing: Medical devices usually require high precision and smooth surface, and turn-milling composite processing can be used to process various medical device parts.

General machinery manufacturing: General machinery manufacturing includes the manufacturing of various mechanical equipment, and turn-milling composite processing can be used to process various mechanical parts to improve processing efficiency and accuracy.

The application of turn-milling composite machining in the above industries can not only improve production efficiency and processing accuracy, but also reduce costs, save time, and meet the needs of complex parts processing.

Industrial Man | Embarking on Turning-Milling Composite Processing

Turning-milling composite processing allows for the completion of multiple processing operations in a single setup, thereby shortening processing time, improving processing precision, and increasing processing efficiency. Industrial Man, as a professional turning-milling composite manufacturer, possesses years of experience in mechanical processing. Our company offers a complete range of CNC turning-milling composite machine products, rich experience, and supports custom processing. Industrial Man provides a one-stop service with comprehensive pre-sales, in-sales, and after-sales support. Our prices are reasonable, delivery is timely, and we provide online real-time quotes. If you have processing needs for turning-milling composites, feel free to click and consult!
