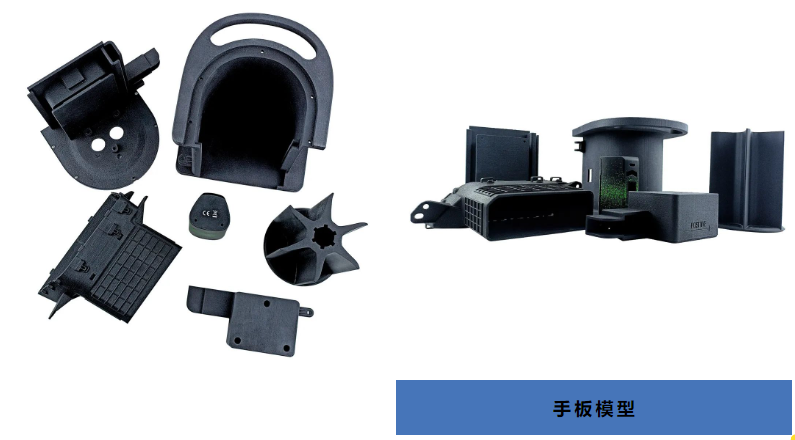

The application of the prototype in the research and development period

 “Before the manufacture of industrial products, there is a process of product development, and the prototype processing is an important step of the application in the process of product development. Engineering research and development is presented in front of people through patterns and texts plus 3D digital models and VR virtual forms. In many cases, it can not never be achieved the intuitive effect compare with a real, physical prototype”

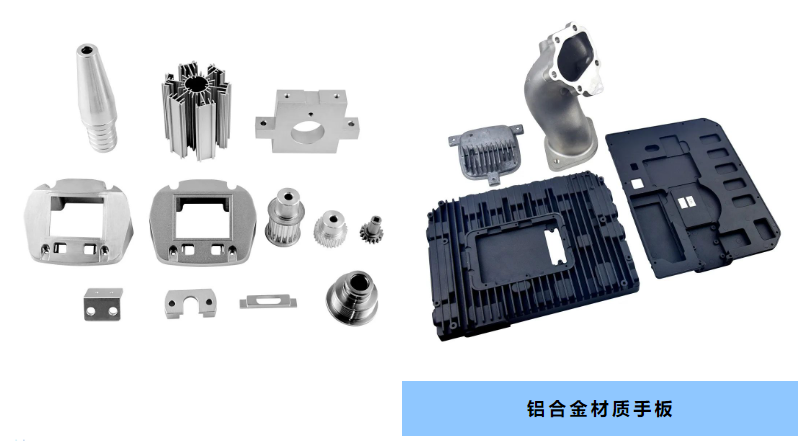

Aluminum alloy material prototype

    The prototype can be processed by aluminum alloy material and CNC machining. At the same time, according to the 3D digital model diagram designed by the research and development, the 3D digital model diagram is input into the memory of the CNC machining center step by step in the form of digital code input by the CNC programmer, and then the CNC operation master installs it with tooling fixtures, Clip. Install the aluminum alloy material on the table of the CNC machining center, and finally process the aluminum alloy prototype model according to each program instruction output by the programmer

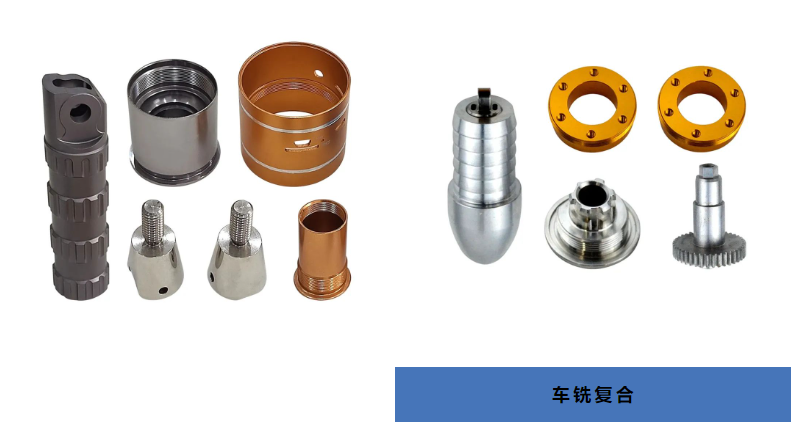

Aluminum turning and milling combined, CNC lathe processing prototype

      Turn-milling combined processing of irregular-shaped and multi-faceted prototypes has the characteristics of bright appearance and high degree of agreement with 3D digital models, and the processing accuracy can reach a tolerance of 0.005 mm. In recent years, the turning-milling combined machine has been widely used in the processing of prototypes. The turn-milling combined CNC turning process is fast, and the biggest advantage is that there is no need to turn the side when processing the prototype. This machine has the functions of CNC turning and CNC milling , Fully automatic clamping and the performance of fully automatic processing prototype products.

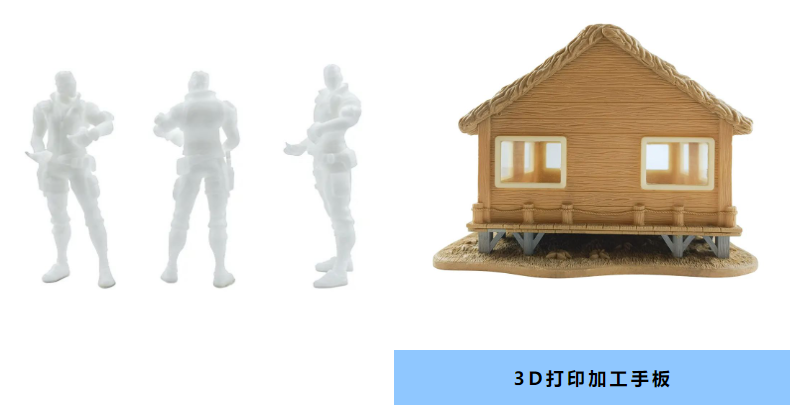

3D printing processing prototype

    3D printing technology has replaced the CNC prototype processing method of most ABS materials in prototype processing. The cost of CNC processing prototypes will be higher than the cost of 3D printing prototypes. When CNC is no-rigid requirements to process prototypes, in general, the prototype model is changed to 3D printing processing method, because 3D printing prototypes takes less time and costs Lower. The 3D printing plastic prototypes in the industrial-man company are basically free at this stage, unless the customer's product mold does not place an order with our company. As long as the customer places an order for mass production to our company, the 3D printing prototype is completely free of charge

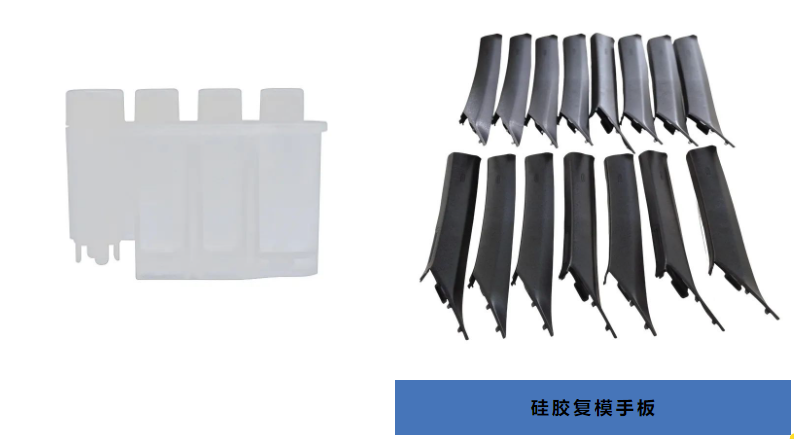

Vacuum casting prototype

      Vacuum casting is a process suitable for about 30 sets of small batch prototypes, and is basically used in the preliminary experimental performance inspection and functional verification of products. In the early stage of opening the formal mold and putting it into production, the role of the vacuum casting can significantly reduce the production cost of the follow-up formal mold. The advantage of the vacuum casting itself is that the production cycle is short, and it can quickly reflect the true practicability of the 3D digital model, and quickly show the product to the public consumer viewing.

About industrial-man company

     Adhering to the concept of "reducing cost and increasing efficiency, flexible manufacturing", industrial-man company have long been committed to the development of various modeling capabilities, high-efficiency batch processing, high-precision and low-cost and other fields. In order to keep improving and achieve originality, we not only focus on expanding domestic and foreign partners, but also pursue the research and training of our own high-tech, so as to better realize the goal of bringing our products to the modern, to the world and to the future final goal!
