Material Selection Guide & Technical Characteristics for Metal 3D Printing

Stainless Steel: Industrial-Grade Weather Resistance Benchmark

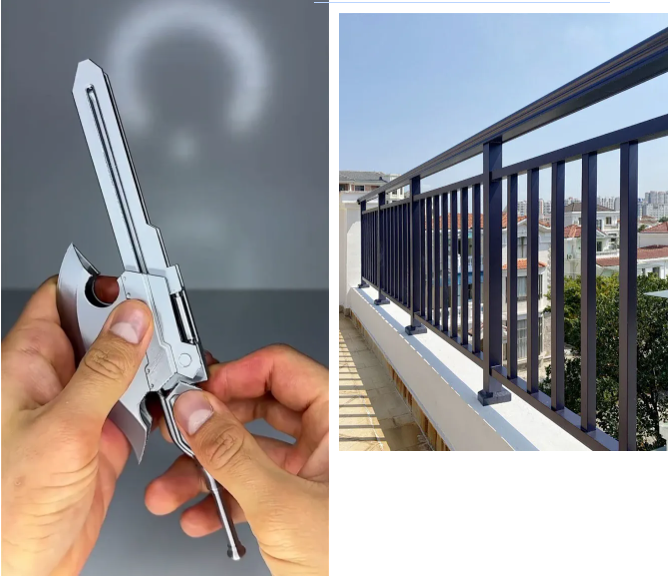

Stainless steel (represented by grade 316L) is the "cost-effective workhorse" of metal 3D printing. Thanks to its excellent corrosion resistance and moderate cost, it dominates industrial applications. With a density of 7.98g/cm³ and a tensile strength of 550-650MPa, it can work stably for a long time in high-temperature environments of 400-800℃, making it especially suitable for harsh conditions like saltwater, weak acids, and alkalis. The optimal 3D printing processes are SLM (Selective Laser Melting) and DMLS (Direct Metal Laser Sintering). When the layer thickness is controlled between 0.05-0.1mm, printing efficiency is significantly improved. Unmelted powder can be recycled and reused, resulting in high material utilization. Post-processing such as polishing or aging treatment can enhance surface precision and hardness. It is widely used in industrial fixtures, outdoor railings, food processing equipment, and other scenarios, greatly reducing customization costs for small-batch production.

Aluminum alloy (mainstream grade AlSi10Mg) has become the core choice for lightweight applications due to its "lightweight yet high-strength" properties. With a density of only 2.7g/cm³ (66% lighter than stainless steel) and a tensile strength of 300-400MPa, it also offers good thermal conductivity and corrosion resistance. It is compatible with SLM and DMLS 3D printing processes—efficient molding can be achieved with a laser power of 200-300W, featuring fast printing speed and simple post-processing. It is particularly suitable for manufacturing complex lightweight structures. Although its long-term temperature resistance is only 120-220℃, it performs excellently in normal and medium-low temperature environments, making it an ideal material for automotive battery brackets, drone arms, and consumer electronics casings. Through 3D printing technology, aluminum alloy parts can be integrally formed to replace traditional assembled components, reducing weight by 60% while maintaining structural strength and significantly improving the performance of end products.

rformance Leader in High-End Fields

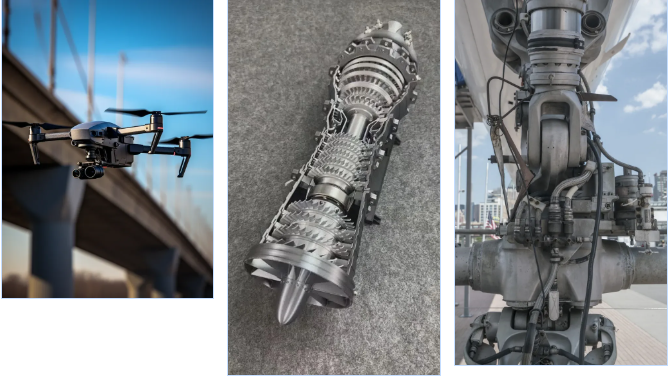

Titanium alloy (typically grade TC4) is hailed as the "high-end flagship material" of metal 3D printing. With a density of 4.51g/cm³ (only 60% of steel) and an impressive tensile strength of 900-1100MPa, it combines excellent biocompatibility and corrosion resistance. The dense oxide film formed on its surface can resist corrosion from strong acids and seawater. It causes no rejection in the human body, making it an indispensable material in the medical and aerospace fields. Suitable 3D printing processes include SLM (with a precision of ±0.1mm) and EBM (Electron Beam Melting). Printing requires argon gas protection to control oxygen content below 0.1% and prevent material brittleness. Post-treatment with Hot Isostatic Pressing (HIP) can eliminate internal pores, increasing strength by 20%. It is widely used in high-end scenarios such as artificial hip joints, aircraft structural parts, and spacecraft components. Although the material cost reaches 800-1200 yuan per kilogram, it is irreplaceable for demands of lightweight design and high precision.
